Focus Sifter Machine Production
Layers: 1-3 layers optional
Screen mesh: 80-635 mesh
Net cleaning method: ultrasonic system
Vibration source: ultrasonic + motor
Applicable materials: light and easy to block powder
Screening accuracy: more than 95%
Graphite powder ultrasonic vibrating screen is a high-precision screening equipment designed for fine powdered graphite screening. Graphite powder has the characteristics of strong conductivity, good lubrication and high temperature resistance. Its particle size is usually between 80 mesh and 500 mesh, and some ultrafine graphite powder even reaches 600 mesh (about 25 microns). Traditional screening equipment is prone to blockage due to the lightness and strong adhesion of powder, affecting efficiency and accuracy. Ultrasonic vibrating screen effectively solves this problem by superimposing high-frequency ultrasonic vibration on the mesh surface. The output of graphite powder can be configured according to the equipment diameter and mesh number, ranging from 100 kg/hour to 2 tons/hour, and the price range is from USD 1,500 to USD 5,000, depending on the model and configuration.
The ultrasonic rotary vibrating screen for graphite powder screening has the following main advantages:
Anti-blocking, finer screening: Graphite powder is prone to adhesion and clogging under high-mesh screens, and the ultrasonic system effectively cleans the screen surface through high-frequency micro-vibration 36,000 times per second to ensure smooth sieve holes.
High screening efficiency: Compared with ordinary vibrating screens, the screening accuracy is increased to more than 95%, suitable for ultra-fine graphite powder of 300 to 600 meshes.
Reduce material loss: Non-contact screening can reduce the loss of graphite powder caused by friction on the screen surface and improve material utilization.
Reduce labor costs: The fully automatic operation system can operate continuously, reducing manual intervention and cleaning frequency.
Multi-layer screening: 1-5 layers of design are optional to meet the needs of simultaneous classification of coarse, medium and fine powders, and improve production line efficiency.

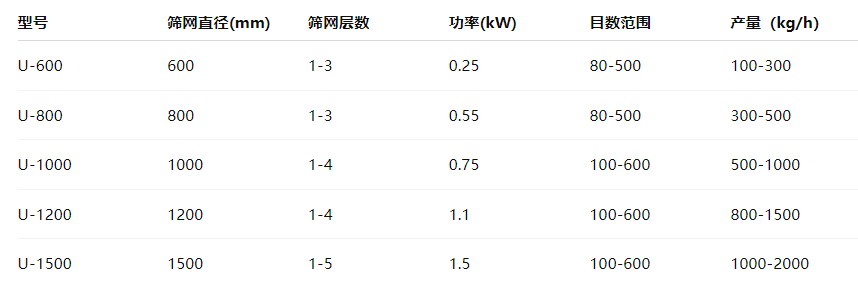

The following are the parameters of conventional models for reference:

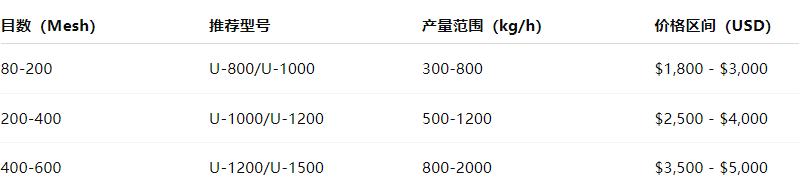

The price is mainly determined by the mesh size, equipment diameter and output:
Graphite powder ultrasonic vibrating screen manufacturers are mainly distributed in central regions such as Henan, Hebei and Jiangsu. When purchasing, you should choose a manufacturer with more than 10 years of experience and familiar with the graphite powder screening process, which can provide one-stop customized services. The equipment is equipped with a self-developed adjustable frequency ultrasonic system, which supports multi-layer screens, intelligent control and vacuum sealing. The after-sales service is perfect, including installation and commissioning, technical training and all-weather support to ensure efficient and stable operation of the equipment.
Our factory focuses on the research and development and manufacturing of graphite powder ultrasonic vibrating screens, with rich experience and mature technology. The company provides multiple models of equipment from DH-600 to DH-1500, all of which can be equipped with high-frequency ultrasonic systems to effectively solve the problems of graphite powder sticking to the screen and blocking the screen. The core component uses a German crystal oscillator with a stable vibration frequency of 36kHz. With high-tension screens and automatic screen cleaning technology, the screening accuracy is improved by more than 30%, supporting up to 5 layers of graded screening. Dahan provides one-to-one non-standard customization services, covering the entire process of selection, installation, and commissioning, with sufficient spare parts and perfect after-sales service.
