Focus Sifter Machine Production
Closed structure: fully sealed dustproof design
Applicable powder: fine powder such as titanium dioxide
Screening accuracy: up to 99% screening rate
Noise control: working noise is less than 75dB
Titanium dioxide vibrating screen dustproof type is a dustproof vibrating screening equipment designed for titanium dioxide screening. Titanium dioxide (Titanium Dioxide) has the characteristics of fineness, easy to fly, light specific gravity, and strong viscosity, so it is easy to generate dust and screen blockage during the screening process. The equipment is optimized for the characteristics of titanium dioxide and adopts a closed structure to prevent dust leakage and ensure a clean production environment. The number of screen meshes can be customized according to needs, generally between 80-400 meshes, suitable for grading needs of different fineness. The conventional output range is 300 to 1500 kg per hour, depending on the nature of the material and the equipment model. In terms of price, depending on the configuration, the price of a single device is generally between $1,800 and $4,500 USD, which is suitable for small and medium-sized and continuous powder production companies.
The titanium dioxide vibrating screen adopts a dust-proof fully enclosed design, which is one of its core advantages. The top cover and the body are equipped with high-elastic sealing rings to prevent fine powder leakage; the joints are fastened by quick locks and pressure rings to ensure good air tightness. The equipment can be equipped with a negative pressure exhaust system and a dust collection interface to effectively control dust and ensure the health of operators and a clean environment. The inner wall of the screen is mirror-polished to avoid powder residue and is easy to clean. It is suitable for high-clean industries such as GMP. The overall design meets the requirements of the powder industry for environmental protection and closed production.
The common technical parameters of this type of vibrating screen are as follows:
Model range: 450, 600, 800, 1000, 1200, 1500, etc.
Screen mesh: 80 mesh ~ 400 mesh (customizable)
Number of layers: 1~3 layers of screen;
Production range: about 300 ~ 1500kg/h;
Motor power: 0.25kW ~ 1.5kW (depending on the model);
Voltage standard: 220V/380V, 50Hz;
Material selection: 304 or 316L stainless steel can be used for the material contact part;
Overall machine size: varies depending on the model, and specific drawings can be provided for docking production line space;
Vibration mode: vertical vibration motor drive, three-dimensional motion trajectory;
Dustproof design: equipped with sealing cover, sealing ring, negative pressure suction port and other accessories.
Depending on the equipment model, material, motor brand and special configuration, the price of titanium dioxide dustproof vibrating screen varies greatly. The following is a reference to the conventional market quotation:
450 single-layer basic type: suitable for small-batch screening, with an output of about 100~300kg/h, mesh size up to 80 mesh, about $1,800 ~ $2,200 USD
800 double-layer sealed type: medium output, suitable for 200~800kg/h, supports two-stage screening, mesh size can be selected up to 120 mesh, about $2,800 ~ $3,500 USD
1200 three-layer high-precision type: with dust extraction interface, suitable for large-scale screening, output up to 1000~1500kg/h, supports high-precision screening up to 200 mesh, about $3,800 ~ $4,500 USD
When choosing a dust-proof vibrating screen for titanium dioxide, the following key factors need to be evaluated:

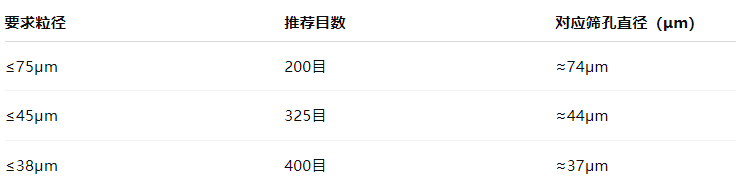

Mesh size and screening accuracy: select appropriate screen specifications according to the particle size requirements of the finished powder;

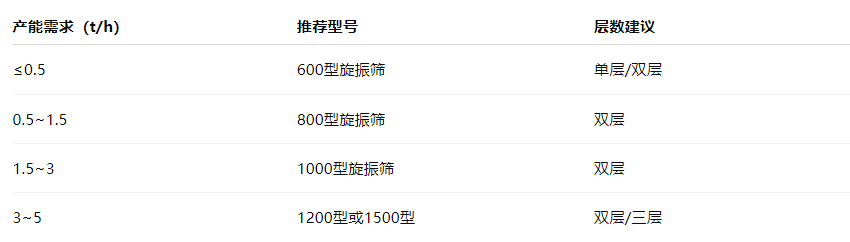

Productivity requirements: determine the screening amount per hour, match the appropriate model and number of layers;

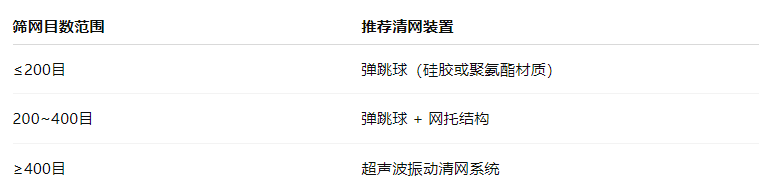

Material characteristics: Titanium dioxide is easy to fly and has a certain viscosity. It is recommended to choose a model with ultrasonic or bouncing ball auxiliary screen cleaning device;
